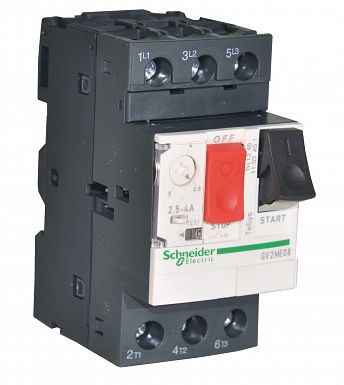

LV SCHNEIDER MOTOR BREAKER

Features

• Manual and local control, when the motor circuit-breaker is used on its own, and automatic and remote control when combined with a contactor
• Motor protection provided by thermal-magnetic devices built into the circuit-breaker
• No live parts are accessible to direct finger contact
• The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost
• The addition of a shunt trip enables remote control of tripping
• The control for the open or enclosed motor circuit-breaker can be locked in the “N/C" position using 3 padlocks
• Connectors: spring terminal, screw clamp

Benefits

Complete protection concentrated in a single product

Compact and simple to select, TeSys GV2 motor circuit-breakers are only 45 mm wide and are categorised
according to their level of performance and functions: type of control, breaking capacity, motor protection and accessories.

Applications

• Industry, infrastructure, building, etc:
  - Motor control and protection, in accordance with standards IEC 947-2 and IEC 947-4-1
  - Easily inserted in any configuration by screw or clip-fixing onto mounting rails
