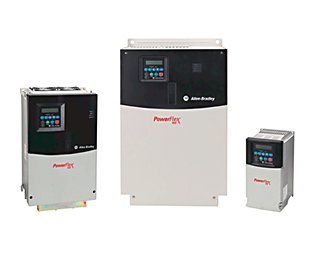

POWERFLEX 400

    PowerFlex® 400 AC Drives are optimized for control of commercial and industrial fans and pumps. Built-in features such as purge and damper input provide a cost-effective solution for speed control in a broad range of variable torque fan and pump applications. An available packaged PowerFlex 400 Fan and Pump drive provides additional control, power, and enclosure options in standardized designs for a cost-effective solution for speed control in variable torque fan and pump applications.

Features
  • Power ratings:
    • 200…240V: 2.2…37 kW / 3…50 Hp / 12…145 A
    • 380…480V: 2.2…250 kW / 3…350 Hp / 6…460 A
  • NEMA/UL Type 1, 12, 3R, and 4 enclosures
  • Flange-mount and panel-mount options
  • V/Hz control, slip compensation, and PID control
  • Internal RS-485, Common Industrial Protocol (CIP), embedded Modbus® RTU, Metasys® N2, and Apogee® FLN P1-plant floor network protocols
  • Supports Drive Serial Interface (DSI) communication modules
  • Drive overload protection, flying start, purge and damper input, hand/off/auto, and sleep/wake features
  • Packaged drive options include disconnect and contactor bypass packages
  • Available line reactor option
  • Configuration and programming via integral keypad, remote keypad, or DriveTools™ SP software
  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time

Packaged HVAC Fan and Pump Drive Options

  • Main input disconnect
  • 3-contactor full bypass with disconnect
  • 3-contactor basic bypass with disconnect
