WEINMULLER WDU

W-Series

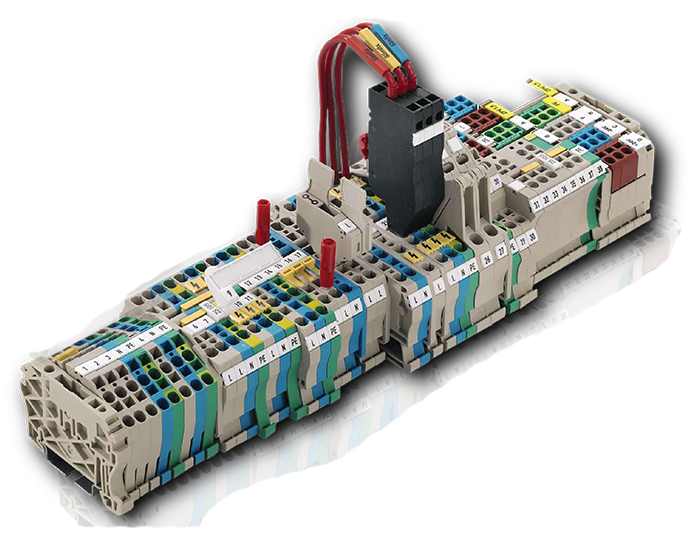

For decades, Weidmüller's W-Series terminal with screw clamp connection technology, has set the standard. With its many advantages, the W-Series remains the unsurpassed market leader.

The W-Series offers solutions for conductor cross-sections from 0.06 to 300 mm² and for all common electrical functions. Another advantage is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. It provides considerable time savings compared to all other screw terminals on the market.

Thanks to the patented design of Weidmüller's W-Series screw connection technology it is possible for two conductors of the same cross-section to be connected in one and the same clamping point without difficulty.

W Series

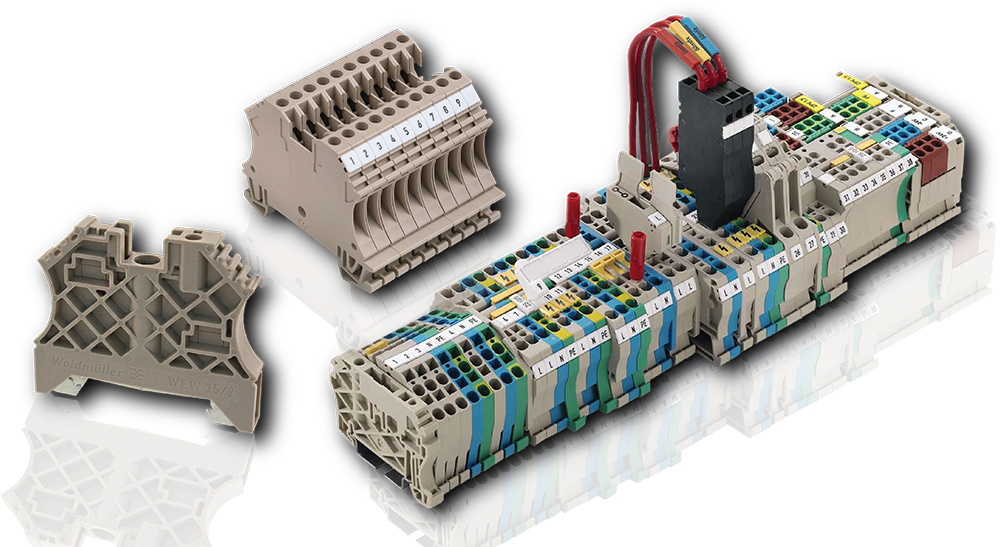

   When it comes to functional perfection down to the finest detail, the screw connection terminals in the W-Series set the standard a long time ago. The combination of benefits is unequalled and puts the W-Series in a leading position on the market. The W-Series offers solutions for conductor cross-sections between 0.05 and 300 mm² and for all standard electrical functions. The pluggable cross-connection (ZQV) is unique for most terminals with cross-sections of 2.5 and 4 mm². It brings considerable time savings compared to all other screw terminals on the market.



Thanks to the patented design of Weidmüller's W-Series screw connection technology it is possible for two conductors with the same cross-section to be connected in one and the same clamping yoke without difficulty.

Designs

W-standard W-compact
  • Same contour design from 2.5 to 10 mm²
  • Conductor sizes 0.05 to 300 mm²
  • Large clamping range
  • Smaller size
  • Identified by an "N" in the type designation
  • Conductor sizes 0.05 to 150 mm²
