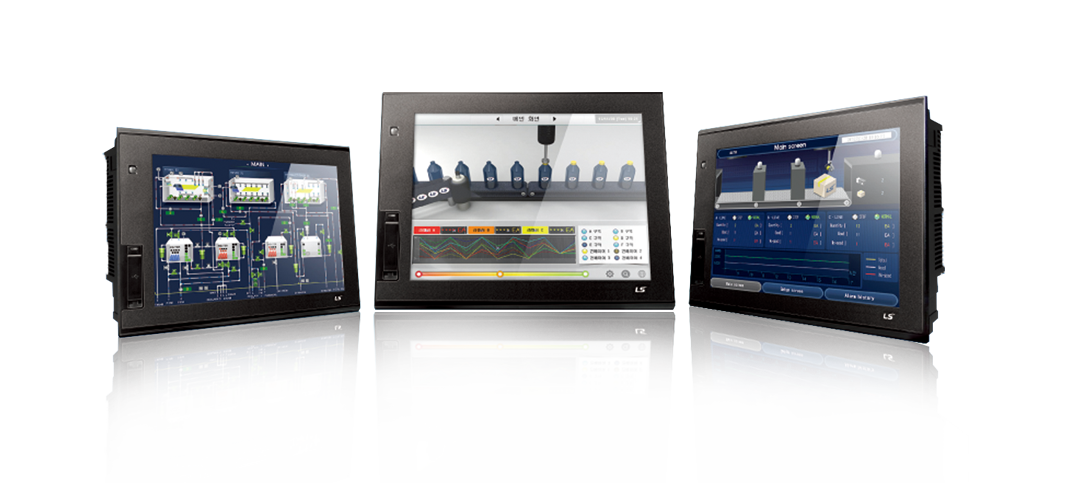

HMI LS iXP Series

HMI LS รุ่น Premium(High Performace)ใหม่เหมาะสำหรับงานทุกประเภท

Feature

High Speed
High-performance 1GHz CPU is installed to improve the data and screen switching speed, and Windows CE 6.0 Professional OS is adopted to execute NET-based external applications.

Large Memory
Large device memory is provided to save mass data.

Presence Sensor
Sensor detects movement within 1m, to control the backlight, ensuring a longer life of the product.

More Colorful
High luminance/resolution LCD with an LED backlight and 24 bit colors to express clear and vivid colors of 16,777,216.

1 Respective Front USB Host/Device Channel
· An additional USB host channel is installed in the front panel.
· A front USB host is used to connect to a USB memory, mouse and keyboard.
· A front USB device port is used to change the XP-Runtime without opening a control panel or download/upload the drawing file created using XP-Builder.

Sound Output Function(For all iXP models)
· The sound files (wav, mp3) registered using XP-Builder can be output to speakers connected to HMI.
· An alarm is generated via speakers to warn operators.
· Up to 512 sound files can be saved.

Function to use SD Cards
iXP supports additional SD memory cards along with previous USB memory to diversify the backup means.

Presence Sensor (For all iXP models)
· The XP presence sensor detects movement within 1m to turn on a backlight.
· When not used, it turns OFF the screen to maintain a longer lifespan of the backlight.

Specification

Dimensions
