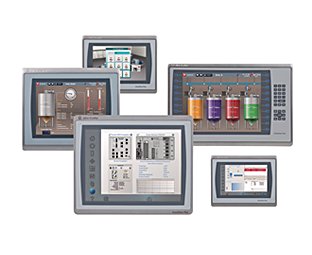

PV PLUS 7

Features

• Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
• Monitors applications from a remote location with VNC connectivity
• Uses an SD card to copy and restore the operator interface quickly
• Includes email and texting notification capabilities
• Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)

Standard version

• Offers display sizes from 4...15 in. with wide screen and keypad options
• Offers 50 screens (25 replace and 25 on-top faceplate screens) and 500 alarms when used with FactoryTalk® Machine Edition 9.0 software with connection to one controller
• Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
• Features single or DLR Ethernet ports for network connectivity

Performance version

• Offers display sizes from 7...19 in. with wide screen and keypad options
• Includes video playback support which provides advanced user help capabilities
• Includes RDP client feature to create thin client terminals
• Features Ethernet ports that support DLR, linear, or star network topologies
