PV PLUS 6

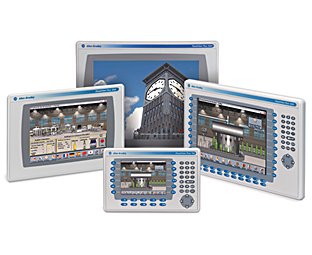

  Our Bulletin 2711P PanelView™ Plus 6 Graphic Terminals let you monitor, control, and display application status information graphically. These terminals offer the open-platform flexibility of the Windows® CE operating system. They are available in 4…15 in. standard display sizes. FactoryTalk® View Studio Machine Edition software lets you program all of your PanelView Plus 6 graphic terminals.

Features

  • Provides significant improvements over the PanelView™ Plus 400 graphic terminals
    • Processor speed increased from 350 MHz to 1 GHz
    • Screen transition rate is up to 70% faster
    • System memory increased from 64MB RAM to 256MB RAM
    • Flash storage space increased from 64MB to 512MB
    • Includes 80MB nonvolatile storage for applications
    • Increased illumination of LED backlight displays
    • Greater connectivity to a variety of peripherals such as printers, mice, and keyboards
  • Supports ActiveX® Controls
  • Integrates with third-party software such as Microsoft® Internet Explorer® and Microsoft Office Viewers
  • Supports remote connectivity (VNC and FTP)
  • Offers backup restore functionality
  • Provides remote recipe and data management through .CSV files
  • Uses vector-based graphics from Symbol Factory
  • Includes built-in PDF viewer for context-sensitive operator support
  • Supports DataStore Plus logging and trending, which eliminates the 300,000 data point limit

PanelView Plus 6 400 Graphic Terminals

  • Includes a 4 in. flat-panel color display with 320 x 240 resolution and 18-bit graphics

PanelView Plus 6 600 Graphic Terminals

  • Includes a 6 in. flat-panel color display with 320 x 240 resolution and 18-bit graphics

PanelView Plus 6 700 Graphic Terminals

  • Includes a 6.5 in. flat-panel color display with 640 x 480 resolution (minimum) and 18-bit graphics
  • Supports operator input via keypad (22 funtion keys), via touch screen or via keypad and touch screen

PanelView Plus 6 1000 Graphic Terminals

  • Includes a 10.4 in. flat-panel color display with 640 x 480 resolution (minimum) and 18-bit graphics
  • Supports operator input via keypad (32 function keys), via touch screen or via keypad and touch screen

PanelView Plus 6 1250 Graphic Terminals

  • Includes a 12.1 in. flat-panel color display with 800 x 600 resolution (mimimum) and 18-bit graphics
  • Supports operator input via keypad (40 function keys), via touch screen or via keypad and touch screen

PanelView  Plus 6 1500 Graphic Terminals

  • Includes a 15 in. flat-panel color display with 1024 x 768 resolution (minimm) and 18-bit graphics
  • Supports operator input via keypad (40 function keys), via touch screen or via keypad and touch screen
